| General |
Product Type |

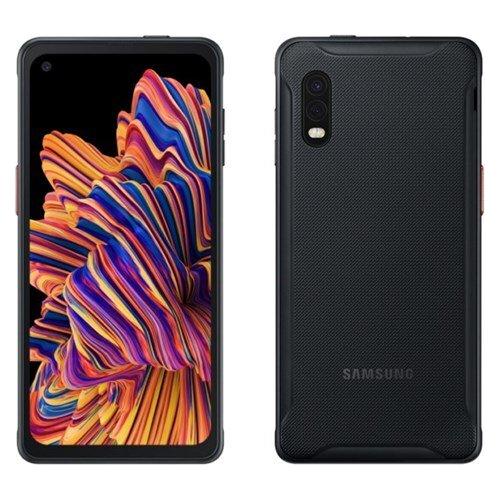

Smartphone |
Manufacturer Model Number |
SM-G715U1 |
Form Factor |
Touch - Rugged |
Protection |
Dustproof, splashproof, waterproof |
Width |
3 in |
Depth |
0.4 in |
Height |
6.3 in |
Weight |
7.76 oz |
Body Color |
Black |
SAR Value |
1.02 W/kg (wireless router), 1.576 W/kg (simultaneous), 0.62 W/kg (body), 1.33 W/kg (head) |
| Cellular |
Technology |
WCDMA (UMTS) / GSM |
Mobile Broadband Generation |
4G |
Service Provider |
Not specified |
Intelligent Assistant |
Bixby |
Navigation |
GPS, GLONASS, BeiDou, Galileo |
SIM Card Type |
Nano SIM |
SIM Card Qty |
Dual-SIM |
Input Device |
Multi-touch |
| Communications |
Data Transmission |
FDD-LTE, TDD-LTE |
2G Band |
850 GSM, 900 GSM, 1800 GSM, 1900 GSM |
3G UMTS Band |
Band 1, Band 2, Band 4, Band 5, Band 8 |
3G UMTS Frequency |
2100, 1900, 1700, 850, 900 |
4G LTE Band |
Band
1, Band 2, Band 3, Band 4, Band 5, Band 7, Band 12, Band 13, Band 14,
Band 20, Band 28, Band 29, Band 38, Band 40, Band 41, Band 48, Band 66 |
4G LTE Frequency |
FDD
2100, FDD 1900 PCS, FDD 1800+, FDD 1700 - 2110 AWS, FDD 850, FDD 2600,
FDD 700a, FDD 700c, FDD 700 PS, FDD 800 DD, FDD 700 APT, FDD 700d, TDD
2600, TDD 2300, TDD 2500, TDD 3600, FDD 1700 - 2110 AWS-3 |
Wireless Interface |
NFC, IEEE 802.11a/b/g/n/ac, Bluetooth 5.0 LE, ANT+ |
| Phone Features |
Sensors |
Accelerometer, proximity sensor, gyro sensor, geomagnetic sensor |
Security Devices |
Fingerprint reader |
Additional Features |
Samsung KNOX, Virtual Light Sensing |
| Media Player |
Supported Digital Audio Standards |
WAV, WMA, AAC, AMR, MP3, FLAC, XMF, OGG, MIDI, M4A, MXMF, OGA, 3GA, AWB, IMY, RTTTL, RTX, OTA, MID |
Supported Digital Video Standards |
MKV, FLV, AVI, WMV, ASF, 3GP, M4V, WebM, 3G2, MP4 |
| Processor |
Type |
Samsung Exynos 9611 |
Clock Speed |
2.3 GHz |
Processor Core Qty |
8-core |
| Memory |
RAM |
4 GB |
Internal Memory Capacity |
64 GB |
User Memory |
48.5 GB |
Supported Flash Memory Cards |
microSDHC, microSD, microSDXC - up to 512 GB |
| Front Camera |
Sensor Resolution |
13 Megapixel |
Lens Aperture |
F/2.0 |
| Main Camera |
Sensor Resolution |
25 Megapixel |
Lens Aperture |
F/1.7 |
Focus Adjustment |
Automatic |
Digital Zoom |
4x |
Camera Modes |
Slow motion mode |
Light Source |
LED flash |
Video Resolutions |
1920 x 1080 (1080p) at 30 fps, 1280 x 720 (720p) at 240 fps, Slo-mo video 1280 x 720 (720p) at 480 fps |
| Second Camera |
Sensor Resolution |
8 Megapixel |
Lens Type |
Ultra wide-angle lens |
Lens Aperture |
F/2.2 |
| Display |
Type |
LCD display |
Technology |
TFT |
Diagonal Size |
6.3" |
Display Resolution |
2340 x 1080 pixels |
Display Format |
Full HD+ |
Color Depth |
16.7 million colors |
Protection |
Corning Gorilla Glass 5 (scratch resistant glass) |
Features |
Edge-to-Edge screen |
| Connections |
Connector Type |
USB Type-C - 24 pin USB-C Headset jack - mini-phone 3.5 mm |
| Battery |
Capacity |
4050 mAh |
Talk Time |
1860 minutes |
Run Time Details |
Active
online usage (LTE): up to 14 hrs Active online usage (Wi-Fi): up to 15
hrs Playback (video): up to 15 hrs Playback (audio): up to 90 hrs Talk
(4G): up to 1860 min |
| Miscellaneous |
Compliant Standards |
MIL-STD 810G, IP68 |
Included Accessories |
Power adapter |
| Manufacturer Warranty |
Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
Max Height of Shock Resistance |
4 ft |
